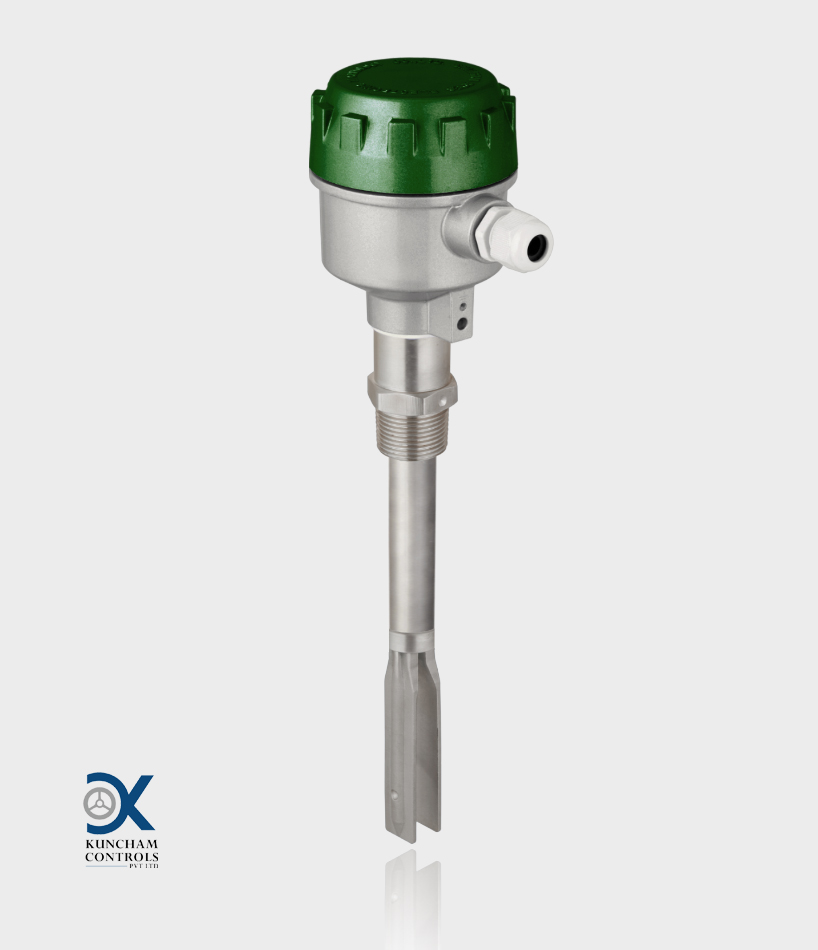

Tuning Fork Level Switch with Extended Length

Model No: KCPL-VF-EL Series
Product Enquire

A tuning fork level switch with extended length is designed for precise fluid level detection in deeper tanks or vessels. Its longer probe allows it to reach greater depths, making it ideal for large or tall containers.

The switch operates by using vibrating forks that change frequency with fluid level changes, triggering accurate level detection. This extended length ensures reliable performance and durability in challenging industrial applications, providing consistent and precise level measurement.

    Product Features:
  • Complete electrical design circuit, Maintenance free
  • Without effect of foam and powder
  • Special tuning fork design and its inherent vibration characteristic which ensure the function of automatic elimination and maximally prevent material hanging
    Specifications:
  • Power Consumption  :   3W
  • Ambient Temperature  :   -40C~60C
  • Fork Length  :   100mm to 3000mm
  • Enclosure  :   Weatherproof IP-67/Flameproof
  • Electrical Connection  :   M20 x 1.5
  • Mounting Connection  :   1" BSP / NPT (M) & Customised
  • Process Temperature  :   -40C~130C
  • Signal Output  :   Relay, DPDT, 5A/230VAC/ 24VDC
  • Minimum Material Density  :   0.7g/cm3
  • Time Delay  :   0.6 Second/Operate; 1~3Seconds/Reset
  • Vibrating Frequency  :   350~370Hz
  • Selectable Fail-Safe  :   Hi / Lo.
  • Selectable Sensitivity  :   Hi / Lo.
Finds applications

Liquids, solids, particles and powder with good fluidity in various fields.

Other Information

Installation Method: Vertical or Horizontal installation
