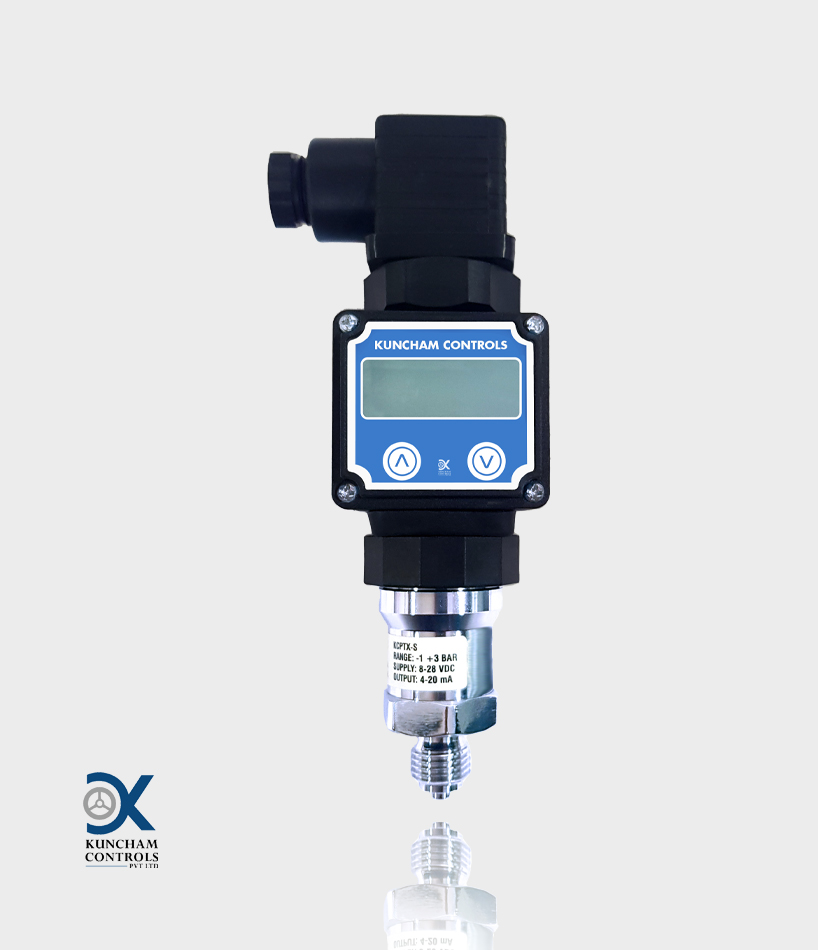

Pressure Transmitter with Display

Model No: KCPL-PTXM-S-LCD

The Kuncham Controls Pressure Transmitter is designed to measure the pressure of liquids or gases in pipes or containers. It operates by converting pressure readings into an electrical signal, which can be easily transmitted to a control system for monitoring and analysis. These pressure transmitters are essential for measuring the pressure or level of liquids and gases and are commonly used in a variety of industrial processes, including filtration plants, chemical feeds, wastewater treatment, food production, and pumping stations.

Operating Conditions

Display :

LCD (4 Segment)

Process Temperature :

-40 … 100°C

Process Pressure :

Refer to section "Operating conditions"

Wetted Parts :

SS316

Sensor :

Ceramic / Diaphragm

Performance Characteristics :

Pressure Type : Relative (Gauged / Vacuum / Compound)
Measuring Range : -1.. 600 Bar
Accuracy : ± 0.5 % FSR / ±0.25
Rise Time (10 ... 90 %) : ≤ 0.005 sec

Electrical Connection :

Connector :

DIN EN 175301-803 A (DIN 43650 A), 4-pin

Cable Outlet :

Upto 5m, 2Wire

Power Supply :

Current Output : 4 … 20 mA , 2-wire
Voltage Supply Range : 8 … 28 V DC

Available Ranges :

(-)1 to 0 Bar | (-)1 to 3 Bar | (-)1 to 7 Bar
0 to 4 Bar | 0 to 10 Bar | 0 to 16 Bar
0 to 21 Bar | 0 to 40 Bar | 0 to 100 Bar
& Many More
