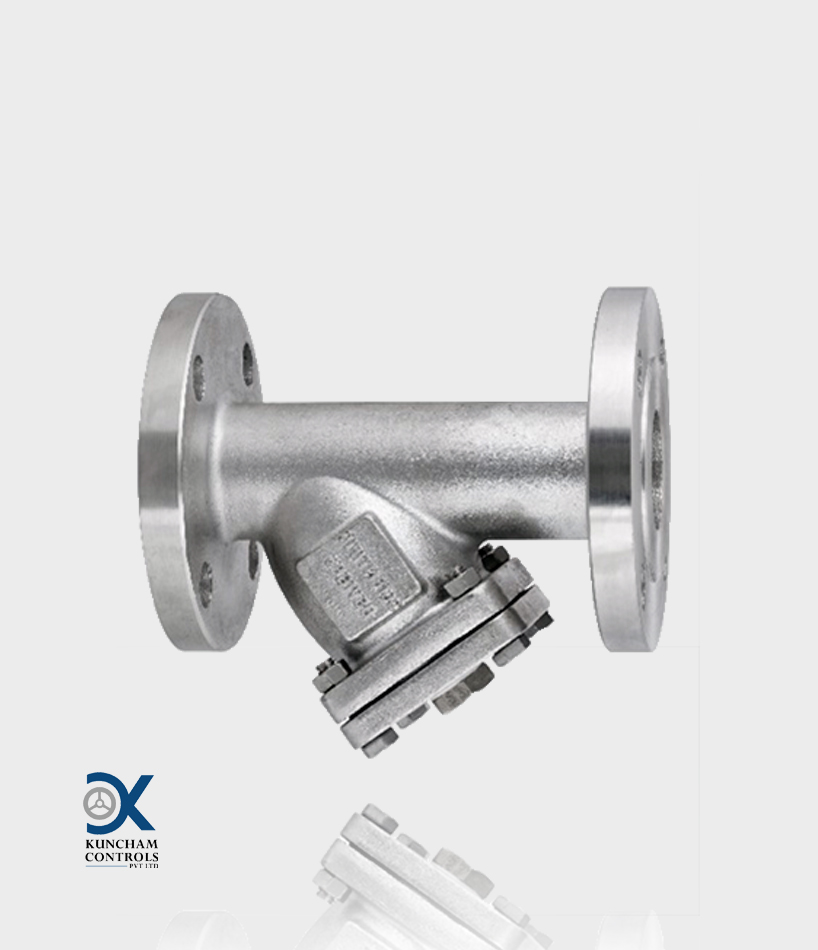

Y Type Strainer

Model No: KCPL-YTS

A Y-Type strainer is a mechanical device used to filter out debris and impurities from pipelines. Shaped like a "Y," it traps particles in its mesh or perforated screen, protecting equipment like pumps, valves, and flow meters from damage. Commonly used in applications involving liquids, gases, or steam, it ensures smooth system operation and reduces maintenance by preventing blockages and equipment wear.

Features :

Flat Seated Screen for Proper Seating.
Easy cleaning or replacing the element.
Compact size and Low weight
Compact size and Low weight
Low Pressure drops across the filter.
With Drain Arrangement on request

Download Brochure

Specifications :

End Connection

: Flanged End to ANSI B 16.5, Class 150 / 300

: BS 10 Table D / E / F / H

: PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64

: DIN Standard / JIS Standard / IS Standard

: Screwed – Threaded End to ANSI B 1.20.1

: Socket Weld End to ANSI B 16.11

MOC (Bill of Material BOM) Body & Cover

: ASTM A 216 GR. WCB (Cast Carbon Steel)

: ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316)

: ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L)

Bolts / Stud & Nuts

: ASTM A 193 GR. B7 / A 194 GR. 2H

: S.S. 304/316/304L/316L

Gasket

: SS 304/316 Spiral Wound with CAF/Graphite Filled

: Graphited Asbestos wire based

: CAF – Compressed Asbestos Fibre

: Graphite Tensed Gasket

: PTFE

Flange To Flange Distance

: Mfg. Std.

Pressure Rating of Valve

: 150# / 300#

Manufacturing Size Range

: 1" (DN25) to 12"(DN 300) (Above on Req.)

Mesh / Filter Element

: ASTM A 276 T – 304 / 316 (SS 304 / SS 316)
