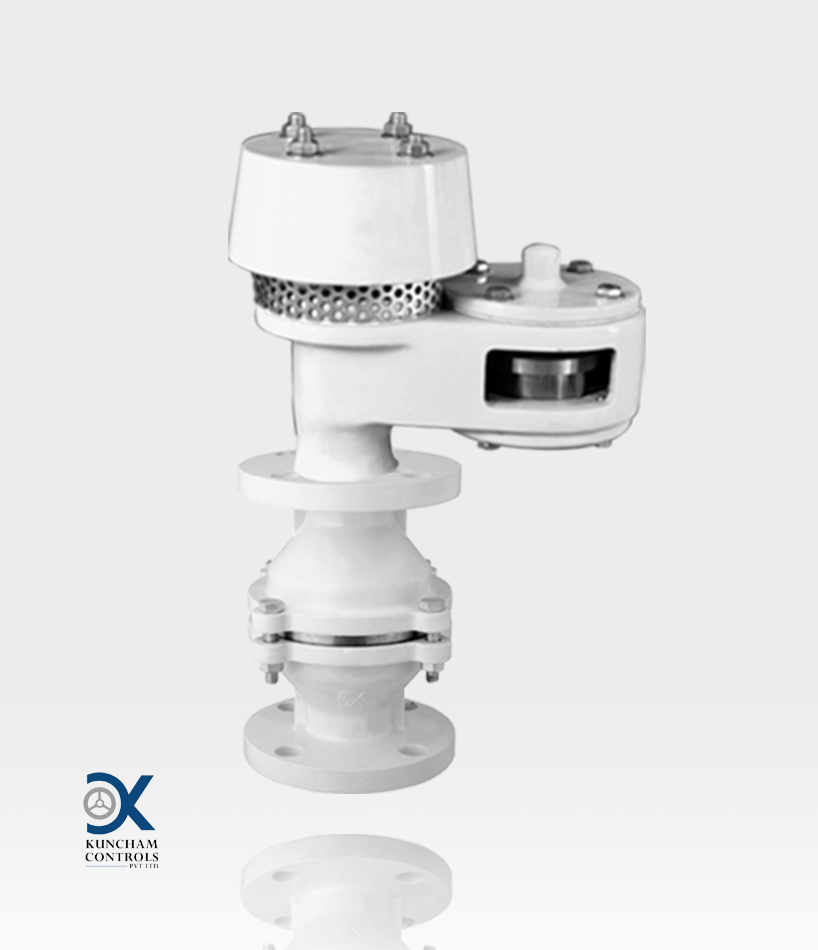

Breather Valve Cum Flame Arrester

Model No: KCPL-FA-BRVL

A breather valve cum flame arrester controls tank pressure and prevents explosions. The breather valve regulates air flow, while the flame arrester stops flames from entering the tank. This combination ensures safety in handling flammable materials, making it ideal for industrial storage tanks in hazardous environments.

Specifications

Size : 1" (DN25) to 8" (DN200)
Design Pressure : 15 Barg
Design Temperature : Upto 350 Deg C
Rating : 150# (Higher Ratings on Request)
End Connection : Flanged / Screwed / Triclover End

Download Brochure

Standard Material of Construction :

Body :

A216 Gr. WCB / A351 Gr. CF8 / A351 Gr. CF8M / A351 Gr. CF3 / A351 Gr. CF3M

Element Plate :

SS 316

Element Mesh :

SS 316

Hood :

Stainless Steel

Features :

Rugged Construction
High Efficiency and Better Performance
The Material Selection of Guiding Components High Efficiency Spring
