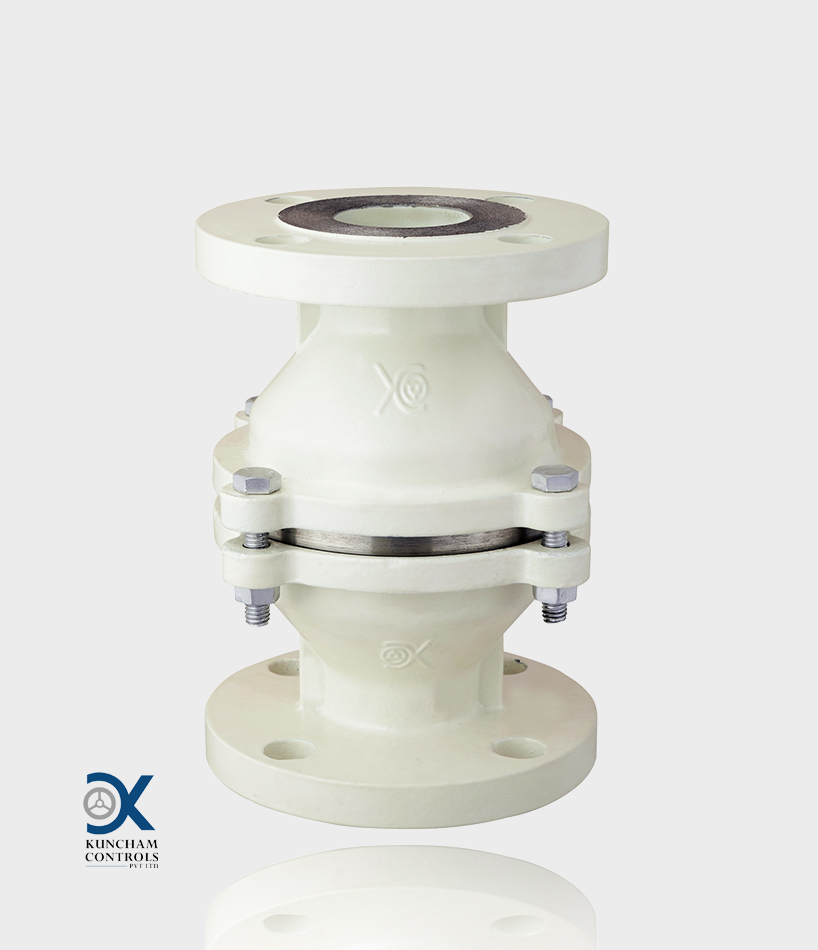

Inline Flame Arrester

Model No: KCPL-FA-IL

The flame arresters are passive devices that prevent the propagation of flame from the exposed side of a pipe to the protected side by the use of a wound crimped metal ribbon type flame cell element. This construction produces a series of uniform openings that are carefully constructed to quench the flame by absorbing the heat of the flame.

Specifications

• Size  : 1" (DN25) to 20" (DN500)
• Design Pressure  : 15 Barg
• Design Temperature  : Upto 350 Deg C
• Rating  : 150# (Higher Ratings on Request)
• End Connection  : Flanged / Screwed / Triclover End
