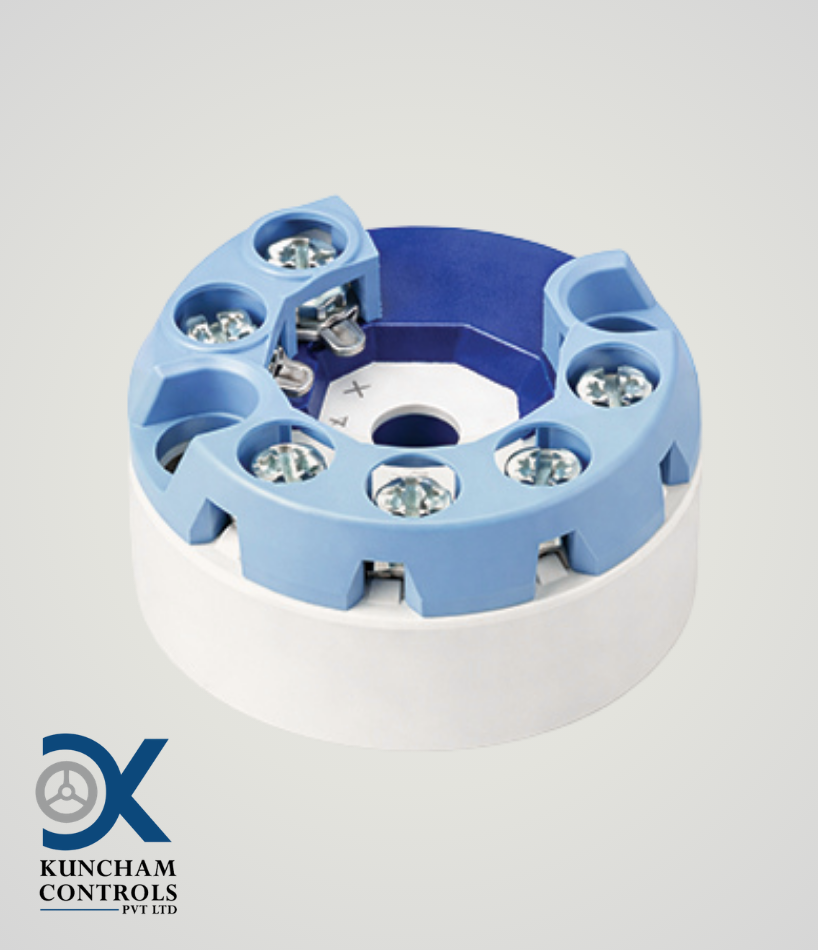

Head Mounted Temperature Transmitter

Model No: KC-TT-HM

The **Kuncham Temperature Indicator & Transmitter** accurately measures process temperature using RTD sensors such as Pt100 or Pt1000. It converts the sensor signal into a standard 4–20 mA output for remote monitoring and control through PLC, DCS, or SCADA systems, while the local display shows real-time temperature at the installation point.

Operating Conditions

Measured Variable :

Temperature

Temperature Sensor Type :

PT-100 / PT-1000

Temperature Range :

-50°C to 600°C

Accuracy :

±0.25% of Full Scale

Output Signal :

4–20 mA (2-wire, loop powered) + HART

Communication (Optional) :

RS485 (Modbus)

Supply Voltage :

12–36 V DC

Response Time :

≤ 1 s

Rated Temperature :

-20°C to +120°C (Higher temperatures with high-temperature arrangement)

Process Connection :

1/2″ BSP / NPT / Flanged

Enclosure Protection :

IP-67 as per IS/IEC 60529:2001, Ex d IIC T6 Gb

Electrical Connection :

M20 × 1.5 / 1/2″ NPT (optional)

Mounting :

Direct / Panel / Wall / Bracket

Flange Material :

ASTM A105 / Mild Steel / AISI SS304 / AISI SS304L / AISI SS316 / AISI SS316L
