Sight Flow Indicator

A sight flow indicator is a visual device installed in a pipeline that allows operators to see the movement of liquids inside the system. At Kuncham Controls, our sight flow indicators use a transparent glass/metal body with internal indicators such as rotors, flappers, or drip windows to visually confirm flow presence, flow direction, flow clarity, and contamination or color changes. They are commonly used where quick and reliable visual verification is required.

Kuncham Controls offers multiple types of sight flow indicators based on application needs:

• Plain View / Window Type: Simple design with a glass window for direct observation of liquid flow.
• Rotary Type: Includes a rotor that spins when liquid flows — ideal for low-flow visibility and clear indication.
• Flapper Type: A flapper inside the body moves with flow, indicating both presence and approximate flow strength.

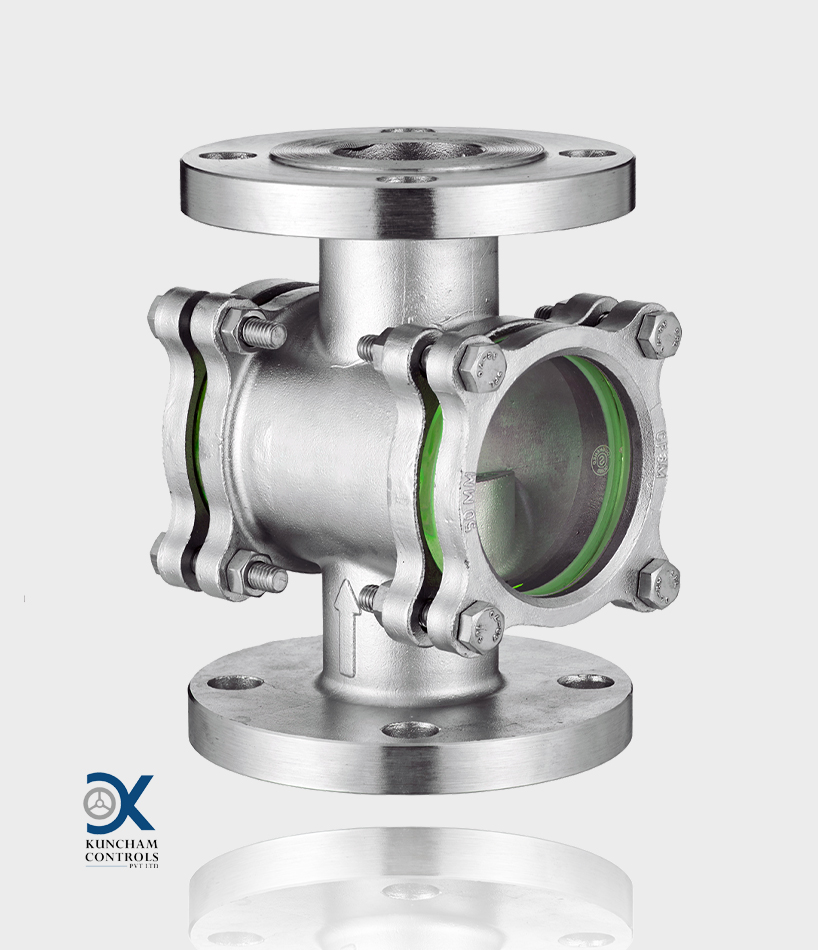

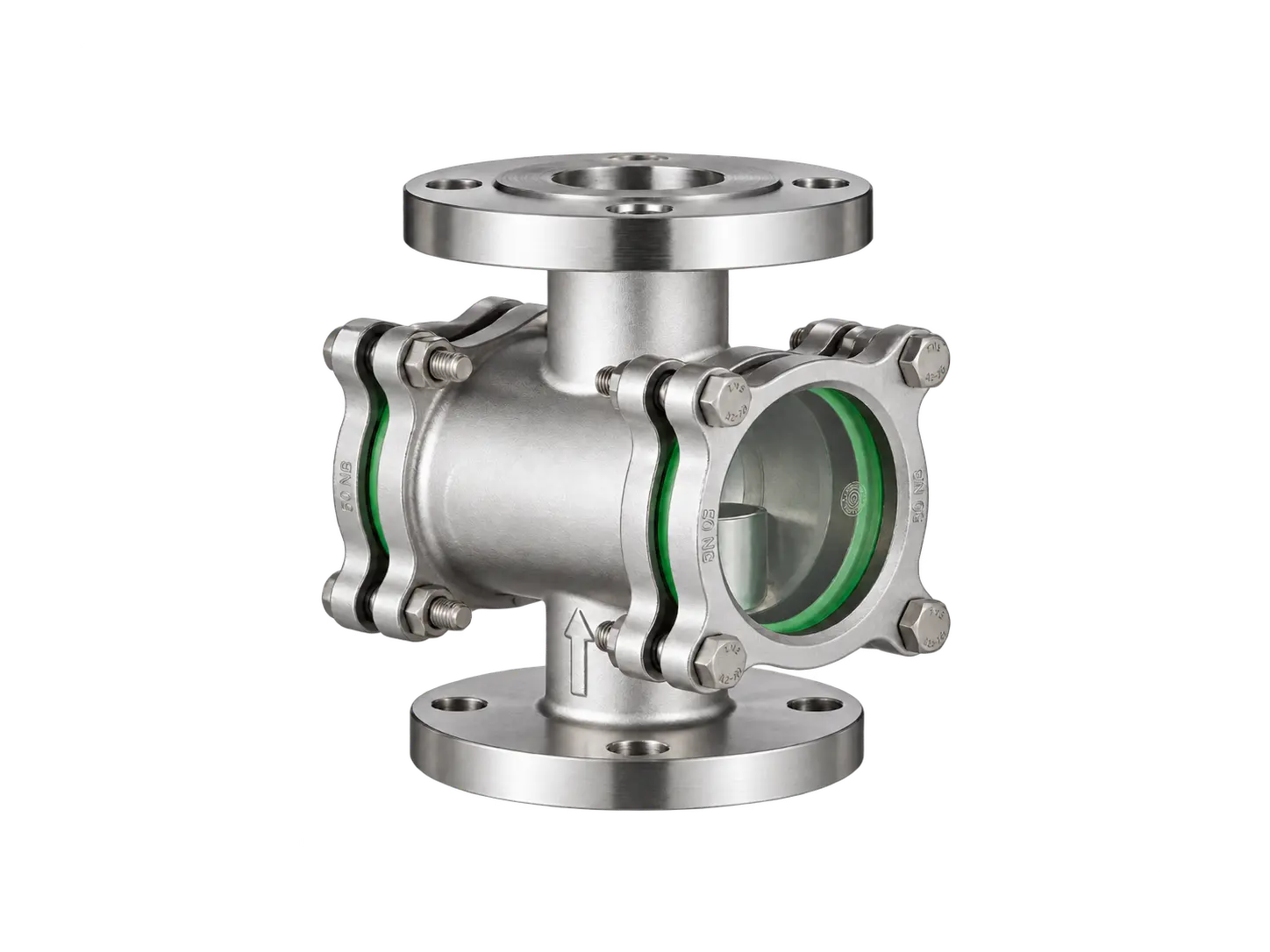

• Double Window Type: Two windows for enhanced visibility and safety.
• 360° Full View Type: Transparent tubular design allowing visual inspection from all angles.

Each type is selected based on fluid properties, pressure rating, and visibility requirements.

When choosing the right sight glass, consider:

• Fluid type (water, chemicals, oil, corrosive media)
• Pressure and temperature rating
• Flow rate and pipe size
• Visibility requirement (rotary, flapper, or plain window)
• Glass material (borosilicate, toughened glass, acrylic depending on fluid compatibility)
• Connection type (flanged, threaded, wafer)
• Industry standards required (food grade, chemical grade, etc.)

Share your fluid details and operating conditions with Kuncham Controls, and we will recommend the most suitable model.

To ensure long service life:

• Install in a straight section of pipeline for clear visual flow
• Avoid mounting too close to pumps or valves that cause turbulence
• Use proper gaskets and ensure leak-free sealing
• Protect glass surfaces from mechanical stress or sudden pressure spikes
• Periodically clean the glass to remove scale, sediment, or chemical deposits
• Inspect for cracks or scratches and replace glass if damaged
• Ensure the indicator is compatible with the fluid to prevent corrosion

Kuncham Controls provides installation guidance and replacement glass/components as needed.

Common problems and solutions include:

• Cloudy or stained glass: Clean the glass or replace it if permanently etched by chemicals.
• Leakage at joints: Check gasket condition, retighten bolts, or use compatible sealing materials.
• Poor visibility of flow: Verify if the fluid is too opaque, flow is too low, or the wrong indicator type was chosen.
• Rotor not spinning / flapper not moving: Check for blocked flow, debris buildup, or worn internal components.

If issues persist, Kuncham Controls Technical Support can assist with inspection, replacement, or upgrade recommendations.
