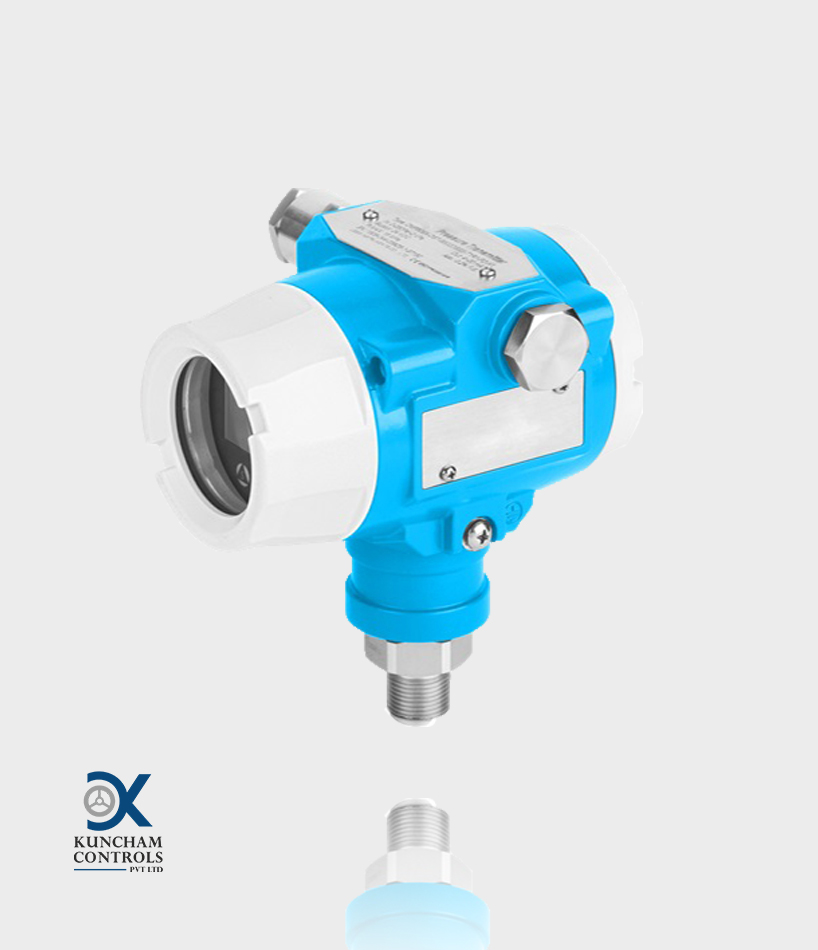

Pressure Indicator Transmitter with Screwed Connection
Model No: KCPIT-S
Product EnquiryKuncham Controls manufactures high-quality Pressure Indicator Transmitter with Screwed Connections, designed for reliability in demanding environments, the KCPIT SERIES offers robust stainless steel construction, a programmable digital display, and user-friendly keypad interface. Its compatibility with industry-standard protocols makes it ideal for integration with DCS, PLC, and SCADA systems. Suitable for a wide range of applications such as process control, oil & gas, chemical plants and water treatment facilities.
Display Specifications
Key Specifications :
- Type : 3-key Membrane Keypad
- Functions : Zero/span adjustment, unit selection, display configuration
- Location : Front panel
- Tactile Feedback : Yes
- Lockout Option : Yes (for unauthorized access prevention)
Technical Specifications :
| PARAMETER | DESCRIPTION | |
|---|---|---|
| Pressure Range | : | -1 to 10 bar / -1 to 100 bar / Custom |
| Overload Pressure | : | 150% of full scale |
| Pressure Type | : | Gauge / Absolute / Compound |
| Accuracy | : | ±0.25% of Full Scale |
| Output Signal | : | 4–20 mA (2-wire) + HART |
| Display Type | : | Digital LCD display (5-digit) |
| Display Units | : | (Refer Display Specification) |
| Power Supply | : | 12–36 VDC |
| Process Connection | : | 1/2" BSP (M), Flanged |
| Electrical Connection | : | Cable gland |
| Protection Class | : | IP65 / IP67 |
| Material (Wetted Parts) | : | SS316L |
| Housing Material | : | Die Cast Aluminum |
| Operating Temp. | : | -20°C to +70°C |
| Storage Temp. | : | -40°C to +85°C |
| Response Time | : | <100 ms |
| Mounting | : | Direct |
Range Table :
| Range Code | Pressure Range | Overpressure Limit |
|---|---|---|
| PIT-10 | -1 to 0 bar | 0.5 bar |
| PIT-50 | 0 to 10 bar | 15 bar |
| PIT-100 | 0 to 30 bar | 45 bar |
| PIT-200 | 0 to 50 bar | 75 bar |
| PIT-Vac | 0 to 100 bar | 15 bar |
| PIT-Vac | -1 to 1 bar | 1.5 bar |
| Custom | As per request | 150% of FS |
